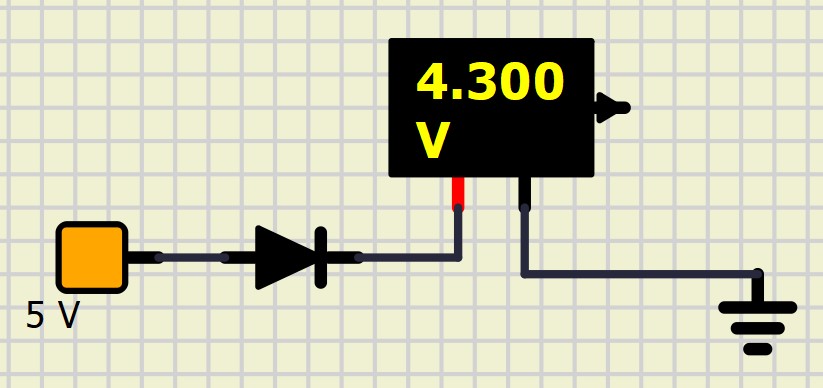

This Image shows the behavior of a diode in 0.4.15-SR9
![SimulIDE-1.0.0-RC1 Strange behavior of diode 0_4_1510](https://i.servimg.com/u/f48/20/39/05/61/0_4_1510.jpg)

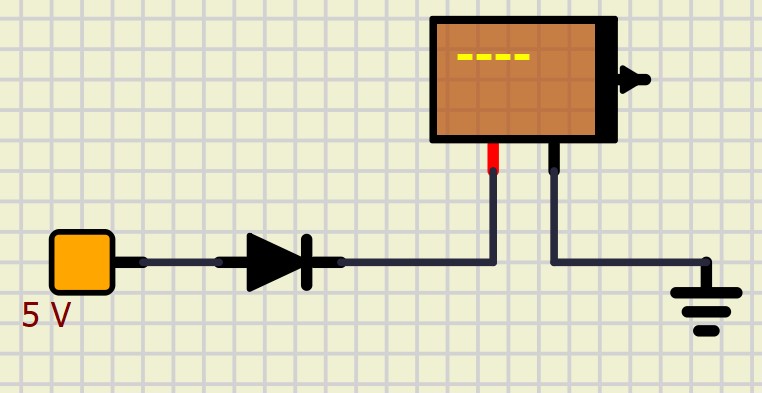

And this in 1.0.0-RC1
![SimulIDE-1.0.0-RC1 Strange behavior of diode 1_0_0-10](https://i.servimg.com/u/f48/20/39/05/61/1_0_0-10.jpg)
I think it is because the default value for the diode resistance is 0.

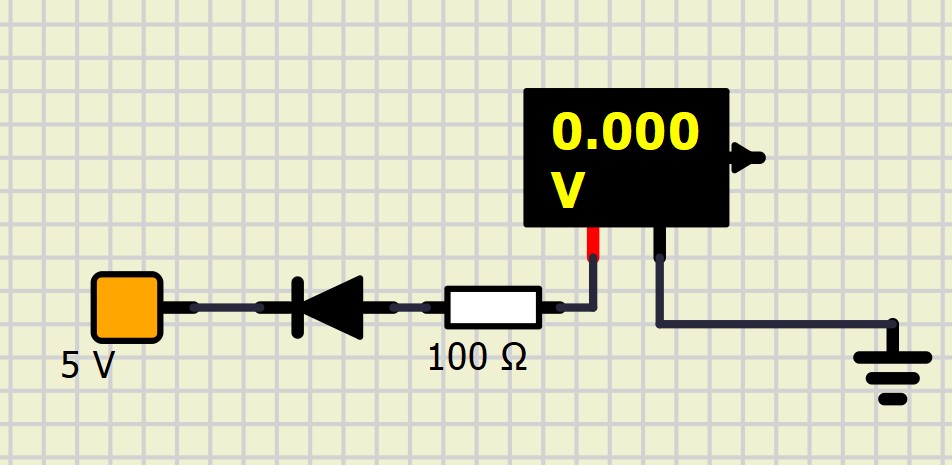

When I add a resistor and turn the diode, I have no voltage in version 0.4.15-SR9 as expected:
![SimulIDE-1.0.0-RC1 Strange behavior of diode 0_4_1511](https://i.servimg.com/u/f48/20/39/05/61/0_4_1511.jpg)
With version 1.0.0-RC1, however, a voltage is present.
![SimulIDE-1.0.0-RC1 Strange behavior of diode 1_0_0-12](https://i.servimg.com/u/f48/20/39/05/61/1_0_0-12.jpg)
In addition, the LED flickers strangely when it burns out without a pre-resistor. Is this on purpose?
![SimulIDE-1.0.0-RC1 Strange behavior of diode 1_0_0-13](https://i.servimg.com/u/f48/20/39/05/61/1_0_0-13.jpg)
![SimulIDE-1.0.0-RC1 Strange behavior of diode 0_4_1510](https://i.servimg.com/u/f48/20/39/05/61/0_4_1510.jpg)
And this in 1.0.0-RC1
![SimulIDE-1.0.0-RC1 Strange behavior of diode 1_0_0-10](https://i.servimg.com/u/f48/20/39/05/61/1_0_0-10.jpg)
I think it is because the default value for the diode resistance is 0.
When I add a resistor and turn the diode, I have no voltage in version 0.4.15-SR9 as expected:
![SimulIDE-1.0.0-RC1 Strange behavior of diode 0_4_1511](https://i.servimg.com/u/f48/20/39/05/61/0_4_1511.jpg)
With version 1.0.0-RC1, however, a voltage is present.
![SimulIDE-1.0.0-RC1 Strange behavior of diode 1_0_0-12](https://i.servimg.com/u/f48/20/39/05/61/1_0_0-12.jpg)
In addition, the LED flickers strangely when it burns out without a pre-resistor. Is this on purpose?
![SimulIDE-1.0.0-RC1 Strange behavior of diode 1_0_0-13](https://i.servimg.com/u/f48/20/39/05/61/1_0_0-13.jpg)
Last edited by arcachofo on Mon Jan 24, 2022 11:11 am; edited 1 time in total (Reason for editing : Mark as solved (green color).)
