Subcircuit not created

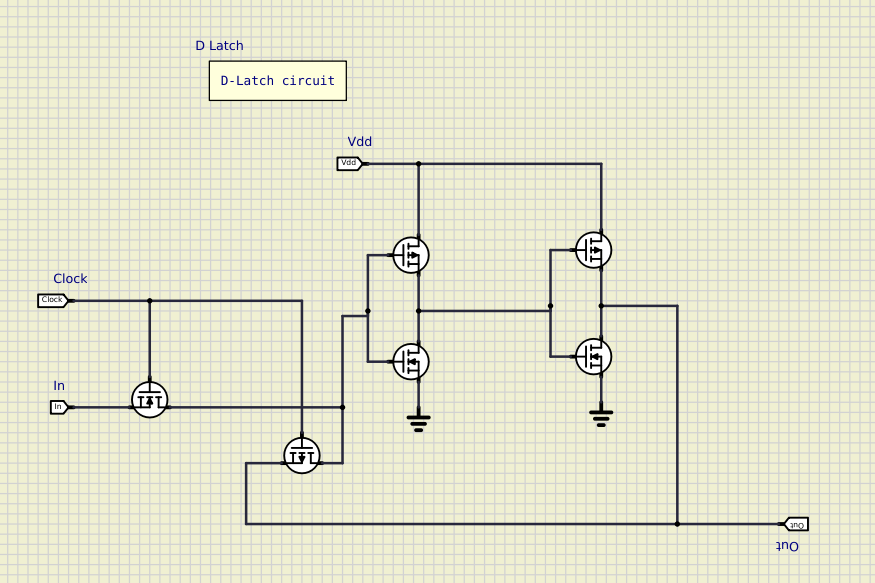

I have created a circuit



and set the tunels.
I also created the package with pins.
However the circuit is not saved as .subcircuit , if I check the content of the file it has <circuit> tag inside, but it must have <subcircuit> tag as I can see it in the share/data directory.

How do I create a Subcircuit file ? I cant see any option like "New subcircuit" when I right-click the mouse.

Hi nulik.

From 0.4.15 creating subcircuits is even easier.
You don't need to create a .subcircuit file, the .simu file is the subcircuit file.
So you have to save that circuit and move it to the corresponding folder as you did with the .subcircuit file before.

This has the advantage that you can easily edit the subcircuit: just open it in simulide, edit and save.

The tutorial has been recently updated (but still need some work):
https://www.simulide.com/p/new-subcircuits.html

You can create the subcircuit and packages in the same circuit, so you can see and/or edit the subcircuit and the package easily:


Having a look at existing subcircuits can also help.


A recomendation:
Check that your circuit works as you expect before creating a subcircuit.


As extra information:
You can now also create boards and shields for Arduino or other boards.
This is still experimental and there ase some problems to solve.
There is a very brief tutorial and video here:
https://www.simulide.com/p/boards.html

arcachofo wrote:Hi nulik.

From 0.4.15 creating subcircuits is even easier.

that's probably it, I am using 0.4.14

however, when I tried to download the binary of 0.4.15 the download fails after downloading 0.8MB of data. I tried many times. I can see the files are hosted at mailfence dot com, they probably have bandwith limit configured to prevent hosting from free accounts. Would it be possible to distribute the files from Github? There is a section there called Releases, where you can upload binary files. Github is very fast.

that's probably it, I am using 0.4.14

however, when I tried to download the binary of 0.4.15 the download fails after downloading 0.8MB of data. I tried many times. I can see the files are hosted at mailfence dot com, they probably have bandwith limit configured to prevent hosting from free accounts.

Use alternative links to the program (see screenshots)

Fizik_S wrote:
Use alternative links to the program (see screenshots)

thanks a lot, I have made it. Just copied naming scheme from Arduino subcircuits, it works now.

Just to clarify:

I can see the files are hosted at mailfence dot com, they probably have bandwith limit configured to prevent hosting from free accounts.

EDIT:
_________________________________

mailfence has no bandwidth limit for free accounts.

I don't know the exact information about bandwidth limits.
What I mean is that this problem is not about bandwidth.
_________________________________

Limits are somewhere else, and I think you already guessed where...
