Is a voltage source is shorting a circuit?

2 posters

Go down  Message [Page 1 of 1]

unbreakmyheart



Is a voltage source is shorting a circuit? or am i doing it wrong?

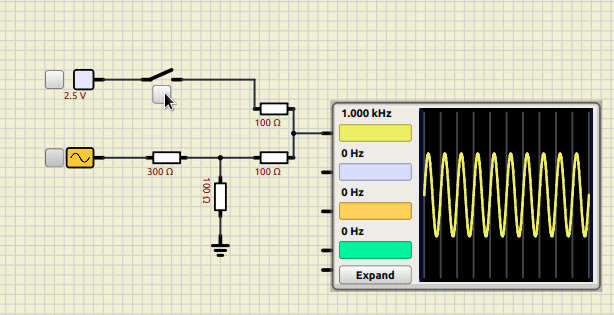

Is a voltage source is shorting a circuit? Peek-2023-05-27-15-47

arcachofo

arcachofo

When the Voltage source is off, the output is 0 Volt.

unbreakmyheart



arcachofo wrote:When the Voltage source is off, the output is 0 Volt.

Ah, so its like grounded? i get it, thanks

arcachofo likes this post
