T1618. DISPLAY LCD HD44780 MATRIX 8X5

2 posters

Go down  Message [Page 1 of 1]

1T1618. DISPLAY LCD HD44780 MATRIX 8X5 Empty T1618. DISPLAY LCD HD44780 MATRIX 8X5 Wed Mar 29, 2023 7:30 pm

Defran

Defran

The display LCD HD44780 has dot matrix 8x5 in the reality, but in this component from Simulide only 7x5.

I attach a program to test it where it is only possible to see 7 rows, not 8.

Tell me, please. Thanks in advance.

T1618. DISPLAY LCD HD44780 MATRIX 8X5 Lcd_no10

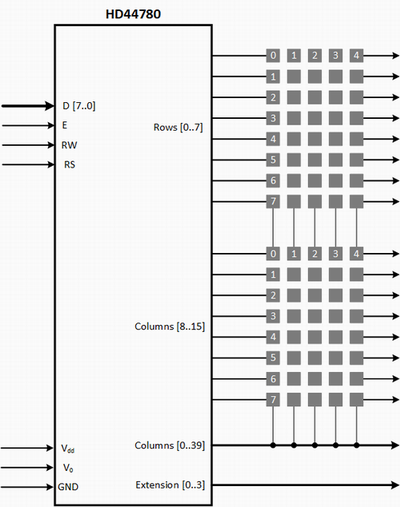

T1618. DISPLAY LCD HD44780 MATRIX 8X5 Vhdl_l10
Attachments
T1618. DISPLAY LCD HD44780 MATRIX 8X5 AttachmentLCD_NO_MATRIX 8X5.zip
You don't have permission to download attachments.
(5 Kb) Downloaded 4 times



Last edited by Defran on Sun May 21, 2023 10:54 pm; edited 1 time in total

arcachofo

arcachofo

Yes, you are right, there is a missing row... scratch
Solved at Rev 1339.

3T1618. DISPLAY LCD HD44780 MATRIX 8X5 Empty Re: T1618. DISPLAY LCD HD44780 MATRIX 8X5 Fri Apr 28, 2023 10:50 pm

Defran

Defran

ok in T1657, thanks.

arcachofo likes this post
