Bus does not seem to transmit across sub-circuits

2 posters

Go down  Message [Page 1 of 1]

gmaltk



Hello from a newcomer,

Many thanks for a fine piece of software.
Congratulations for your excellent work.

I am working on version 0.4.15-SR1 in both Linux and Windows and I face the following issue:

When a bus outside a sub-circuit connects to a bus inside it, signals do not seem to travel.

If I connect direct lines instead of a bus to the sub-circuit, the signals travel but they seem to stop in the first innner bus.

I created the following test sub-circuit:

Bus does not seem to transmit across sub-circuits Test10

making it a board to show the 7 Seg BCD:

Bus does not seem to transmit across sub-circuits Test_b10

and when I test it, I get the following:

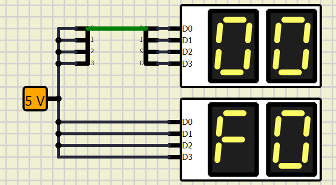

Bus does not seem to transmit across sub-circuits Test_t10

Thank you in advance,
Theodore K.

arcachofo

arcachofo

Thanks, I will have a look.

arcachofo

arcachofo

Solved in 0.4.15 Rev 195.

gmaltk



Many thanks for your very fast response.

One little thing seems to be remaining though (if I'm not mistaken):

If buses connect through a node, instead of in a serial fashion, they still seem to not transmit.

In the following picture the left connection seems problematic, while the right connection is OK:

Bus does not seem to transmit across sub-circuits Buses10

Thank you in advance once more,
Theodore K.

arcachofo

arcachofo

You are right.
Solved in 0.4.15 Rev 196.
